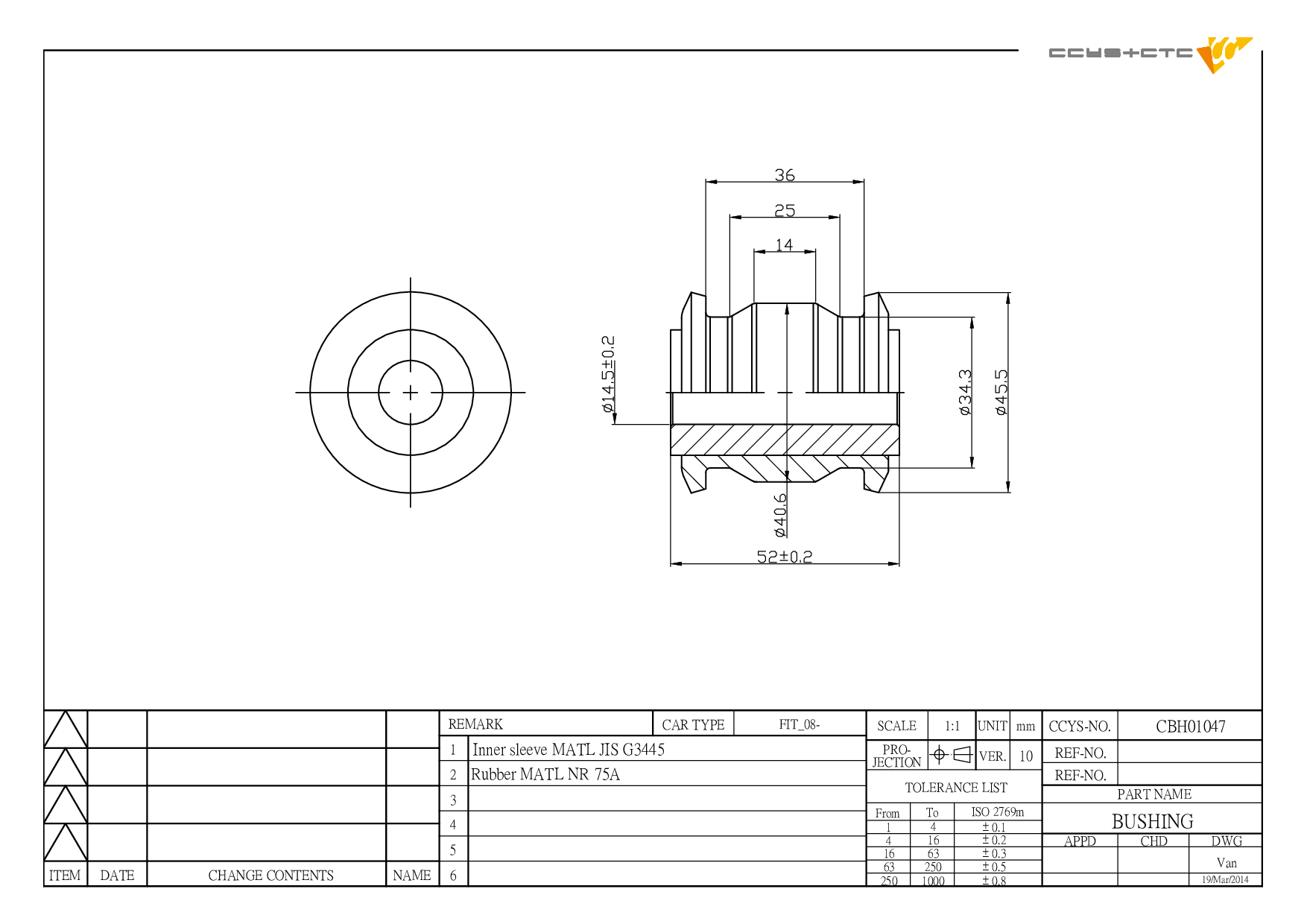

CBH01047
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE No. | 40170-20500 / 40170-20700 / 40170-31400 / 40170-31500 / 40170-32700 / 40170-32800 / 51350-SYY-010 / 51350-T5A-J00 / 51350-T5A-J01 / 51350-T5A-J02 / 51350-T5A-J11 / 51350-T5R-A01 / 51350-T7A-003 / 51350-T7A-901 / 51350-T7J-H01 / 51350-T7W-A00 / 51350-T7W-A50 / 51350-T8M-G00 / 51350-TF0-030 / 5 |
| Length | 45.5 mm |
| Width | 45.5 mm |
| Height | 52 mm |
| Net Weight | 0.2 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01046L | FRONT LOWER ARM LH REAR | 51360-TF0-020 51360-TF0-030 51360-TG0-T02 51360-TH9-000 |
|
 |
CBH01046R | FRONT LOWER ARM RH REAR | 51350-TF0-030 51350-TG0-T02 51350-TG5-C01 51350-TH9-000 |
|
 |
CBH01047 | FRONT LOWER ARM INNER | 40170-20500 40170-20700 40170-31400 40170-31500 40170-32700 40170-32800 51350-SYY-010 51350-T5A-J00 51350-T5A-J01 51350-T5A-J02 51350-T5A-J11 51350-T5R-A01 51350-T7A-003 51350-T7A-901 51350-T7J-H01 51350-T7W-A00 51350-T7W-A50 51350-T8M-G00 51350-TF0-030 5 |
|
 |
CS-154L | FRONT LOWER LH | 51360-SYY-010 51360-TF0-020 51360-TF0-030 51360-TG0-T02 51360-TG5-C01 51360-TH9-000 51360-TK6-A01 |
|
 |
CS-154R | FRONT LOWER RH | 51350-SYY-010 51350-TF0-020 51350-TF0-030 51350-TG0-T02 51350-TG5-C01 51350-TH9-000 51350-TK6-A01 |
| Model (Year) |
|---|
|
CITY V Saloon (GM2, GM3) CITY VI Saloon (GM4, GM5, GM6, GM9, GM7) | GRACE FREED I (GB3, GB4, GP3) FREED SPIKE (GB3, GB4, GP3) HR-V (RU) INSIGHT (ZE_) JAZZ III (GE_, GG_, GP_, ZA_) | FIT JAZZ IV (GK_) | FIT VEZEL SUV (RU) | HR-V |
