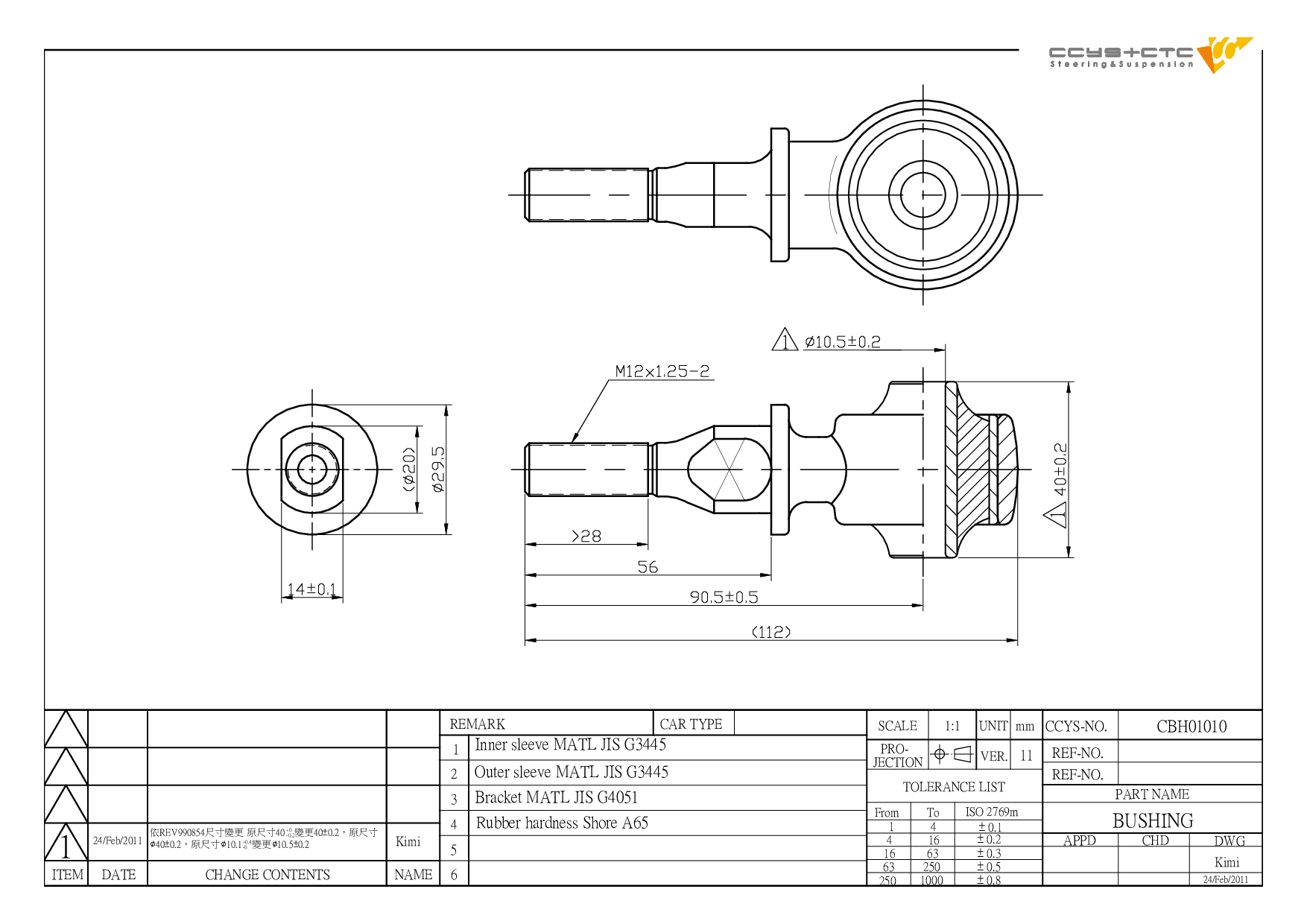

CBH01010
| Designation | Rubber Bushing |
| Position | FRONT UPPER ARM KIT |
| OE No. | |
| Length | 112 mm |
| Width | 40 mm |
| Height | 44 mm |
| Net Weight | 0.29 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01010 | FRONT UPPER ARM KIT | ||
 |
CBH01011 | FRONT UPPER ARM INNER | 52393-SM1-A01 52393-SM1-A02 52393-SM4-003 52393-SM4-004 52393-SM4-013 52393-SM4-300 RGX100240 |
|
 |
CBH01022 | FRONT LOWER ARM INNER | 51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431 |
|
 |
CRE01012 | D= M14X1.5 , C= M12X1.25 | 53010-SV4-000 |
|
 |
CS-118L | FRONT UPPER LH | 51460-SV4-000 51460-SV4-A00 |
|
 |
CS-118R | FRONT UPPER RH | 51450-SV4-000 51450-SV4-A00 |
|
 |
CS-126L | FRONT LOWER LH | 51365-SV4-000 51365-SV7-A00 51365-SX0-000 |
|
 |
CS-126R | FRONT LOWER RH | 51355-SV4-000 51355-SV7-A00 51355-SX0-000 |
|
 |
CSL01002 | FRONT | 51313-SM4-000 90112-SM4-000 90112-SM4-010 90112-SM4-020 |
|
 |
CSL01003 | REAR (A= 134.5MM) | 52306-SE0-010 52306-SE0-020 52306-SE0-030 52306-SE0-A00 52306-SN7-E01 |
|
 |
CSL01025L | FRONT LH (A= 80MM) | 51321-SDA-A04 51321-SDR-003 51321-SEA-E01 51325-TA0-A01 |
|
 |
CSL01025R | FRONT RH (A= 80MM) | 51320-SDA-A04 51320-SDR-003 51320-SEA-E01 51320-TA0-A01 |
|
 |
CTE01002L | FRONT AXLE LH (C= M14X1.5) | 53560-S1A-E01 53560-S84-A01 53560-SM4-003 53560-SM4-004 53560-SM4-J62 53560-SV4-003 53560-SV4-013 53560-SV7-003 53560-SX0-003 53560-SX0-013 53560-SX4-003 GSJ407 |
|
 |
CTE01002R | FRONT AXLE RH (C= M14X1.5) | 53540-S1A-E01 53540-S84-A01 53540-SM4-003 53540-SM4-004 53540-SM4-J62 53540-SV4-003 53540-SV4-013 53540-SV7-003 53540-SX0-003 53540-SX0-013 53540-SX4-003 GSJ408 |
|
 |
CTE01008L | FRONT AXLE LH (C= M14X1.5) | 53560-SDA-A01 |
|
 |
CTE01008R | FRONT AXLE RH (C= M14X1.5) | 53540-SDA-A01 |
| Model (Year) |
|---|
|
ACCORD IV (CB) ACCORD IV Aerodeck (CB) ACCORD IV Coupe (CB, CC) ACCORD V (CC, CD) |
