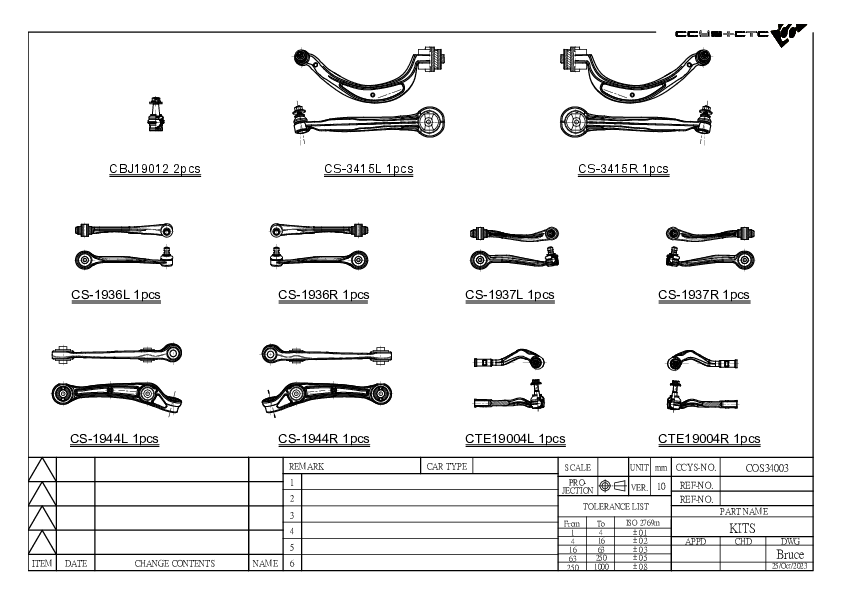

COS34003
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 12.77 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19025 | FRONT UPPER ARM INNER | ||
 |
CBH19027 | FRONT LOWER ARM REAR | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B |
|
 |
COS34003 | |||
 |
CS-1936L | FRONT UPPER LH | 8K0 407 505B |
|
 |
CS-1936R | FRONT UPPER RH | 8K0 407 506B |
|
 |
CS-1937L | FRONT UPPER LH | 8K0 407 509B 8K0 407 509P |
|
 |
CS-1937R | FRONT UPPER RH | 8K0 407 510B 8K0 407 510P |
|
 |
CS-1944L | FRONT LOWER LH | 8K0 407 151F 8K0 407 151G 8KD 407 151B PAC 407 151 |
|
 |
CS-1944R | FRONT LOWER RH | 8K0 407 152F 8K0 407 152G 8KD 407 152B PAC 407 152 |
|
 |
CS-1949L | REAR UPPER LH | 8K0 505 323H |
|
 |
CS-1949R | REAR UPPER RH | 8K0 505 324H |
|
 |
CS-1950 | REAR LOWER LH/RH | 8K0 501 529L |
|
 |
CS-1966L | FRONT LOWER LH | ||
 |
CS-1966R | FRONT LOWER RH | ||
 |
CS-1967L | FRONT LOWER LH | ||
 |
CS-1967R | FRONT LOWER RH | ||
 |
CS-3415L | FRONT LOWER LH | 9A7 407 693 03 |
|
 |
CS-3415R | FRONT LOWER RH | 9A7 407 694 03 |
|
 |
CS-3423L | FRONT UPPER LH | ||
 |
CS-3423R | FRONT UPPER RH | ||
 |
CS-3424L | FRONT UPPER LH | ||
 |
CS-3424R | FRONT UPPER RH | ||
 |
CS-3427L | FRONT UPPER LH | ||
 |
CS-3427R | FRONT UPPER RH | ||
 |
CS-3428L | FRONT UPPER LH | ||
 |
CS-3428R | FRONT UPPER RH | ||
 |
CTE19004L | FRONT AXLE LH (C= M16X1.5) | 4G0 423 811A 8K0 407 253E 8K0 407 253F 8K0 422 817A 8K0 422 817B |
|
 |
CTE19004R | FRONT AXLE RH (C= M16X1.5) | 4G0 423 812A 8K0 407 254E 8K0 407 254F 8K0 422 818A 8K0 422 818B |
| Model (Year) |
|---|
|
MACAN (95B) |
